Auto 200 Ton Hydraulic Extrusion Press For Copper Tee Elbow Plumbing HY33

Product Categories

Huzhou Xinke Forging Machine Co., Ltd

Contact Now

Name: Auto 200 Ton Hydraulic Extrusion Press For Copper Tee Elbow Plumbing HY33
Brand: XINKE
Price: 10000 USD

Brand Name : XINKE

Certification : CE, ISO9001:2000

Place of Origin : China

MOQ : 1 Unit

Price : USD 10000-100000 Per Unit

Payment Terms : L/C, T/T

Supply Ability : 10 Units Per Months

Delivery Time : 90-180 Working Days

Packaging Details : Wooden case, waterproof cover

Frame : Compact Integrated Frame

Drive : Oil Hydraulic

Control : PLC

Feature : High Accuracy

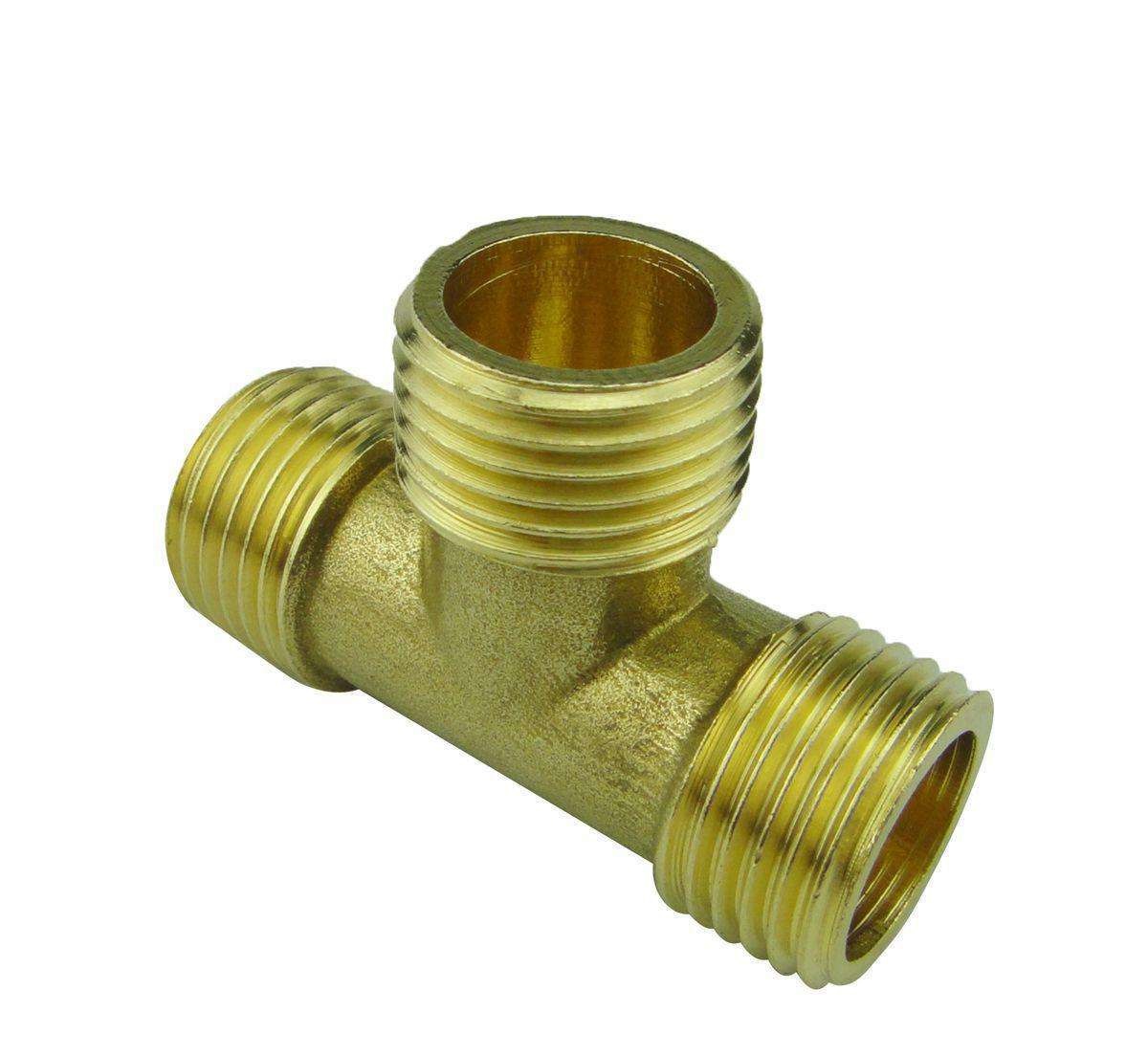

Application : Pipe Fitting, Tube Fitting

Contact Now

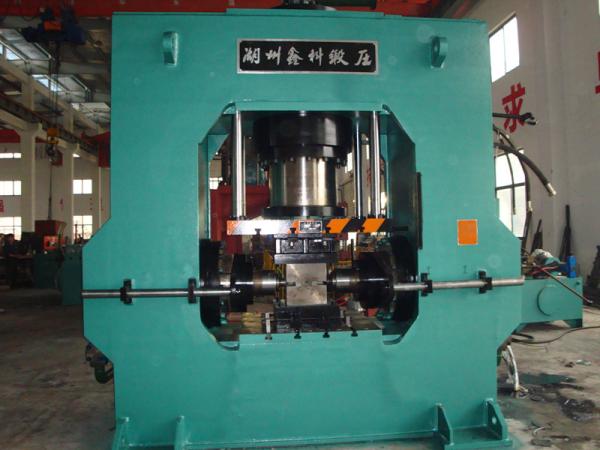

HY33 200T Hydraulic Fitting Press For Copper Tee Elbow Plumbing

It is a hydraulic press with compact integrated frame, the press is used for multi-directional extruding process of small metal parts.

Features:

Application:

Accessories for option:

Moveable worktable

Proportional adjustment device for slider

Proportional adjustment device for hydraulic cushion

Buffering device

Light curtain protection device

Touch-screen

Floating guide rail for die exchange

Working position light

Technical Data:

Item		Unit	HY33-200
Main cylinder	Nominal force	KN	2000
	Stroke	mm	710
	Descend speed	mm/s	60
	Working speed	mm/s	4-6
	Return force	KN	470
	Return speed	mm/s	60
Lateral cylinder	Nominal force	KN	1000
	Stroke	mm	200
	Approach	mm/s	14
	Working speed	mm/s	10
	Return speed	mm/s	17
Ejection cylinder	Nominal force	KN	160
	Stroke	mm	200
	Ejection speed	mm/s	100
	Return speed	mm/s	250
Worktable size	L.R.	mm	900
Worktable size	F.B.	mm	900
Distance between piston rod of ejection cylinder and worktable		mm	200
Open daylight		mm	1120
Height of center line of lateral cylinder above worktable		mm	220
Distance between piston rods of two lateral cylinders		mm	450/900
Worktable height above the floor		mm	800
Overall dimension	L.R.	mm	4800
	F.B.	mm	2000
	Height above the floor	mm	3520
Central positioning hole of worktable		mm	φ200
Motor power		KW	15.55

Auto 200 Ton Hydraulic Extrusion Press For Copper Tee Elbow Plumbing HY33
